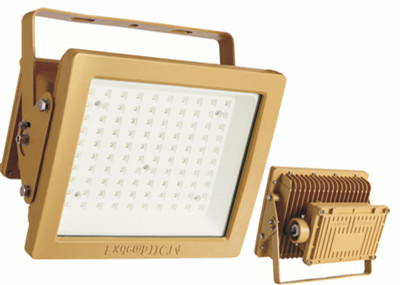

100 Watt LED Explosive Proof Lighting Fixtures PF0.96 Led
Anti-explosion Lamp
1. Products Description
- Die-casting aluminum structure
- PC lens processed by the professional optics design
- Tempered glass clear lamp housing with the features of 4J energy
impact resistance and thermal shock resistance.
- Exd structure design to offer more reliable explosion proof
quality.
- Independent Exe connection cavity to improve the safety
- Specialized corrosion resistance, vibration resistance and water &
dust proof design, both indoor and outdoor application in the harsh
conditions
- High duty LED light source to ensure long life operation and superb
energy saving.
- Constant current design to guarantee the operation stability.
2. Specification
| item code | HKV-NFBF011-100 |
| Power frequency | 50/60Hz |
| Light source | led, top brand chips/custom |
| N. W. | 7.5KG |
| Outer carton size(cm) | 35*29*23 |
| Lumen Flux(LM) | >11000 |
| Luminous Efficiency | 110-130lm/w |
| Anti-corrosion | WF2 |
| CRI | >=85 (Ra) |
| Operating Temperature | -35 to 45℃ |
| IP Rating | IP65 |
| CCT | 2700-6500K, optional |
| Using Life (hours) | >50000 |
| Certification | ATEX, WF2,CCC |
| Temperature Class | T5-T6 |

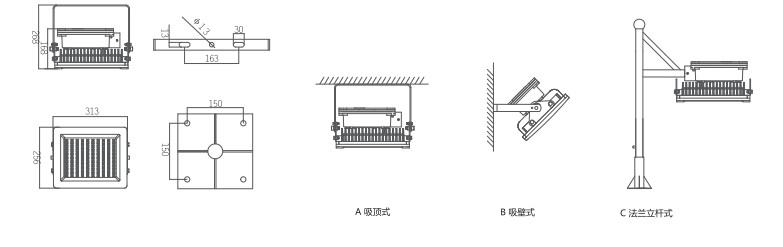

3. Dimension&Fixtrue Installion
4. Packing Information
Net Weight.: 7.5kg
Outer carton size: 34*28*22cm(1pcs/ctn)
G.W.: 10kg/ctn
5. Application
Hazardous zones: 1, 2,
Gas : IIA IIB IIC
Dust: Zone 20 Zone 21. Zone 22
Temperature :T5~T6
It meets the standards and requirements for hazardous environments.
Ideal for use in oil fields, chemical plants, power plants,
petroleum, painting areas & and areas with dust.
6. Company Information
Chengdu HKV Electronic Technology Co.,Ltd., established in 2015 is
located in Chengdu City of Sichuan Province. And it is committed to
provide professional solutions and technical service for customers'
indoor and outdoor LED lighting projects. Besides, our main
preofessionals have experience in lighting industry over 8 years so
that the factory are equipped with enough ability to receive
customization.
The main products of HKV include LED explosion proof light, LED
street light , high bay light, Led flood light, tunnel light, and
LED panel light and so on. Their excellent quality has been been
verified by our regular customer.
"Responsibility, Profession, Innovation" is our principle. We are
always trying our best to offer best products, best quality , best
service . We are always there for our customers.
7. FAQ
1.Why choose us?
With a strong R&D team and patented technologies, Wisdom Light
is able to consistently deliver to our clients unique design,safe, reliable,and valuable products.
We offer a comprehensive OEM &ODM service package including consulting, individual planning design
and engineering, cost analysis, delivery terms prognostics,
manufacturing, and warranty.
2.How long will your order take to arrive?
We will process your order once received your payment.
Production Term:During regular business days are typically processed and shipped the sample orders within 7 days and 15-30 days for bulk order.It varies depending on value and size of your order.
Transport term:Once an order has be ready, delivery time depends on the chosen shipping method and courier. After your order has been shipped you will receive a shipping
confirmation that contains the tracking details from our sales
person.
3.Do you provide OEM&ODM Service?
Yes,we had a professional R&D team and good experience in making custom OEM and ODM orders.
