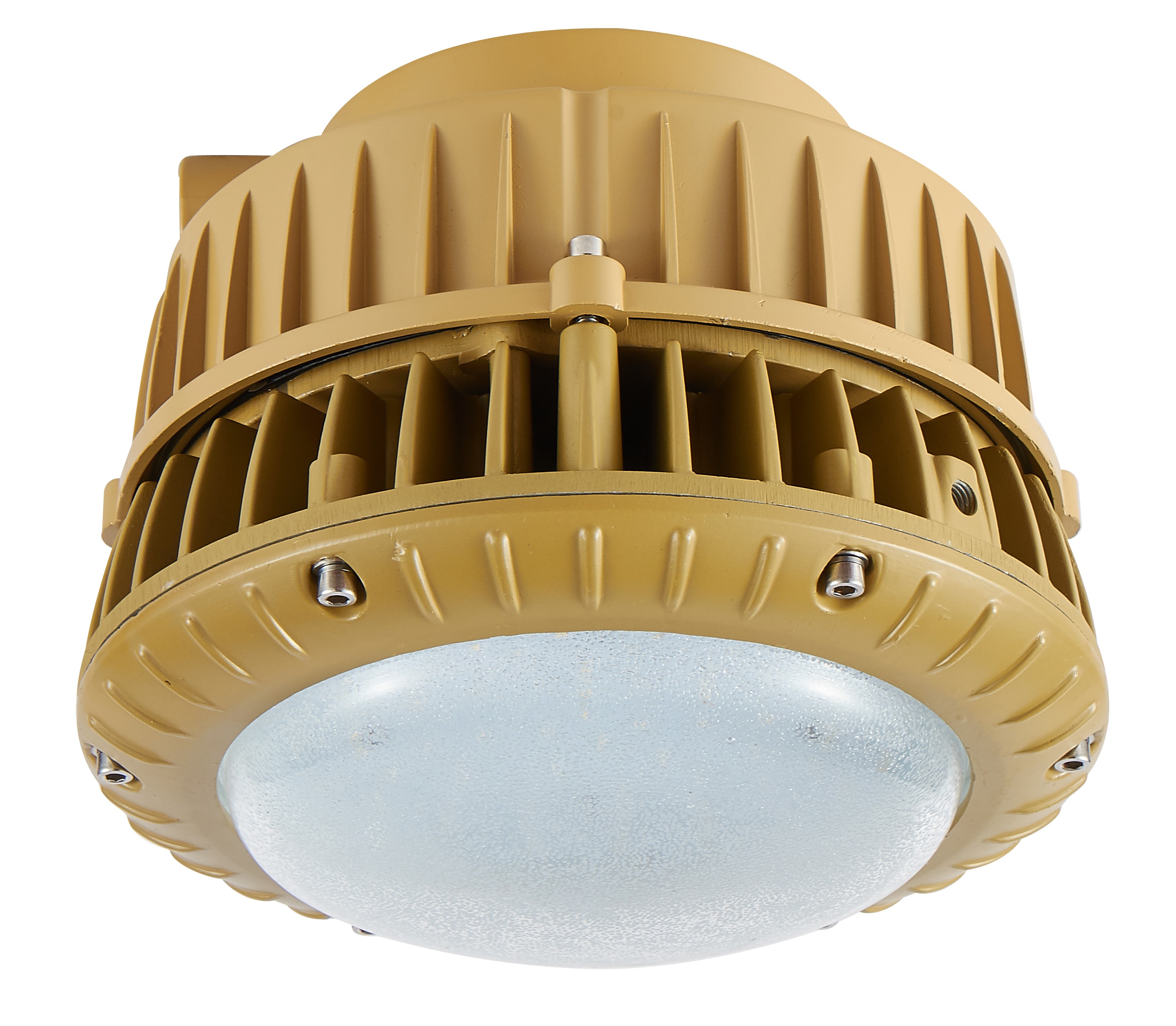

NEW-FBP-60W CCT 2600-6500K explosive led light fixture high lumen
110-130lm/W
1. specification
| Model Name | NEW-FBP-60W |
| Input voltage | AC90-265V |
| Power frequency | 50/60Hz |
| Power factor | 0.96 |
| Watte | 60W |
| Lumen | 6600lm |
| Luminous Efficiency | 110-130lm/w |
| CCT | 2700-3500K 3500-5000K 5000-6500K |
| CRI | Ra>=85 |
| Operating Temperature | -30℃ to 45℃ |
| IP | IP65 |
| Anti-corrosion | WF2 |
| Lifespan | >50000h |
| Certification | EX, IECEx, ATEX, CE, WF2 |
2. Products Description
A) Body in die-casting copper-free aluminum alloy, treated by
electrostatic spraying. with good performance of high temperature
resistance
and climate resistance. Tempered glass with good transmittancy.
B) Driver: Isolation class I, protection OPP / OVP / SCP / OTP,
Wide input voltage 90-265VAC, built-in active PFC>0.96,
THD<15%.
Surge Protection 10KV / 6KV / 4KV.
C) LED SOURCE: LED light source with diffirent possibilities if
temperature of the color. Execution on request also with
3000K,6000K.
D) Standard natural white color 4000K
E) High Efficient of performance chromatic CRI>85,
lifespan>50000h
F) Features of the cooling system
Carefully designed three-chamber independent structure, to ensure
the stability of the electronic components
Carefully designed with air diversion structure of the heat pipe
heat tank to ensure that the LED light source life
Carefully designed independent power chamber structure, power
supply work is not affected by the impact of LED heat to ensure the
stability of the work of longevity
G)Structure of the whole lamp
IIC-class explosion-proof structure, and IP66 protection class,
with excellent explosion protection performance
The use of high borosilicate tempered glass, can withstand
high-energy impact
All exposed fasteners and accessories are made of stainless steel
with high corrosion resistance
The use of integrated emergency chamber, no need to have another
emergency box. Easy to install and repair
The use of top-open cover of the link, user-friendly wiring and
maintenance, ceiling, tube hanging, suction wall, fence type,
flange a variety of installation methods for customers to choose.

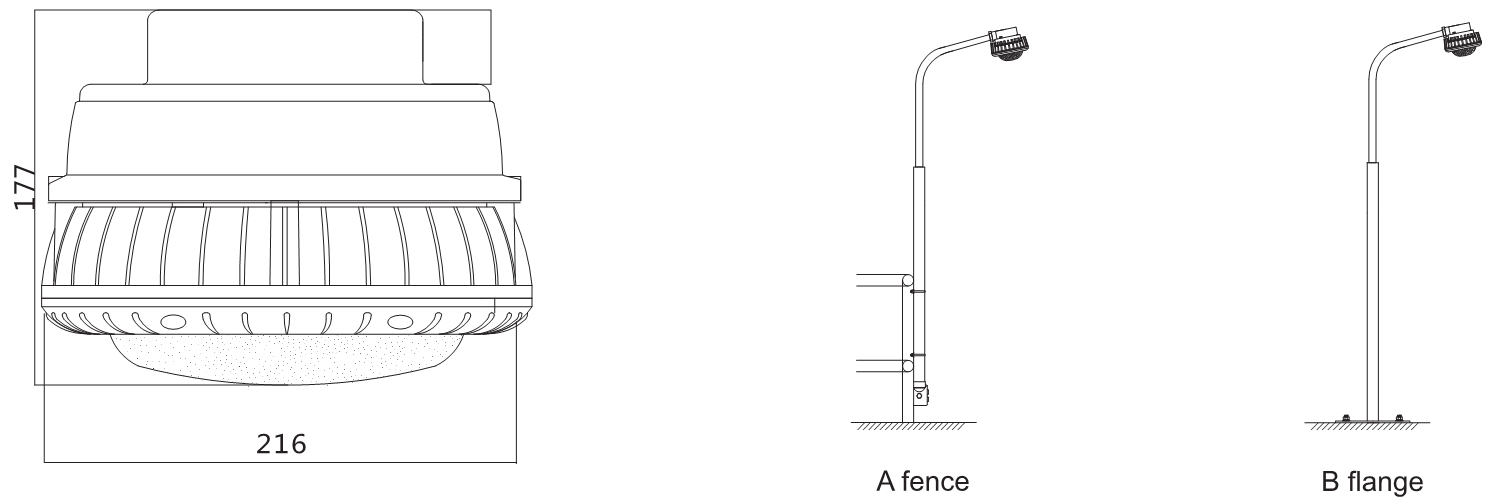

3. Install performance
Different Install according to the actural use.
4. Packing Information
N.W.: 9kg
Inner carton size: 25*25*25cm
Outer carton size: 52*26*27 (2pcs/ctn)
G.W.: 20kg/ctn
5. Application
1) Used in the olifiled, chemical industry, steel industry, power
port, petroleum etc.
2) Harsh environment, moist area Zone1 Zone 2
3) Gas explosive environment: Group IIA, IIB, IIC. Temperature
class: T5 to T6
