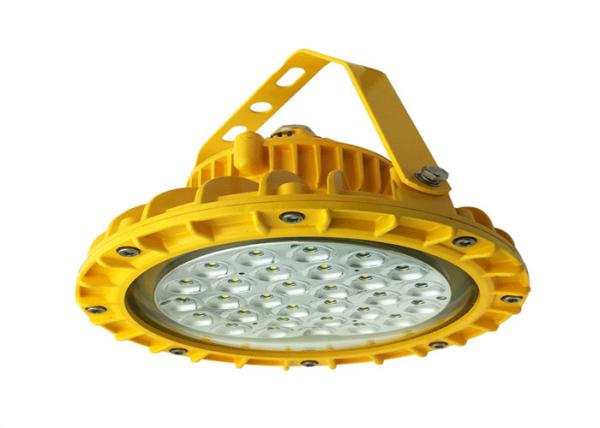

ATEX 50W 100W 150W 200W Adjustable Angle Explosion Proof LED Light
Fixture For Industrial
Product Description
Use occasions
Widely used in oil extraction, oil refining, chemical industry,
military, oil platforms, oil tankers and other dangerous
environment and places, as LED explosion-proof platform lights and
operating lighting dedicated.
Suitable for energy-saving projects and repair replacement
difficult places
Suitable for protection demanding, humid places
Applicable to the explosive gas environment of the 1 District, 2
District places.
Applicable to IIA IIB IIC category Explosive gas atmospheres
Applicable to T1-T6 group temperature group
Product Sepcification
Technical Parameter
| Model | HKV-AJ-FBB |
| Input Voltage | AC85-265V |
| Common wattage | 20w 30w 40w 50w 60w 70w 80w 100w 120w 150w 200w |
| Explosion proof grade | Exd IIC T6 Gb |
| Anti-corrosion | WF2 |
| IP rating | IP 66 |
| Ambient Temperature | +55-60°C |
| PF | 0.95 |
| Warranty | 5-Year |
Performance characteristics
1)Optical system features
Preferably an inlet chip, with excellent luminous flux maintenance
and high efficiency
The use of surface mount technology, a substantial increase in
thermal conductivity
Carefully designed honeycomb light distribution structure,
effectively improve the efficiency of lamps
2)Drive system features
Using cross-flow drive, with short circuit, overvoltage protection
EA type can be used as normal lighting, with emergency function, EB
type as emergency lighting, usually in a closed state, A, B type in
the main power can immediately start emergency lighting, can also
be used for external switch control in the main power The power
outage period starts at any time.
Has excellent electromagnetic compatibility, will not be other
electrical appliances, input network interference, power supply
itself has excellent resistance to electromagnetic interference,
With wide voltage compatibility characteristics, tolerance 20
voltage fluctuation
Driving power using sealant process to ensure that the original
from corrosion
3)Features of the cooling system
Carefully designed three-chamber independent structure, to ensure
the stability of the electronic components
Carefully designed with air diversion structure of the heat pipe
heat tank to ensure that the LED light source life
Carefully designed independent power chamber structure, power
supply work is not affected by the impact of LED heat to ensure the
stability of the work of longevity
4)Structure of the whole lamp
IIC-class explosion-proof structure, and IP66 protection class,
with excellent explosion protection performance
The use of high borosilicate tempered glass, can withstand
high-energy impact
All exposed fasteners and accessories are made of stainless steel
with high corrosion resistance
The use of integrated emergency chamber, no need to have another
emergency box. Easy to install and repair
The use of top-open cover of the link, user-friendly wiring and
maintenance, ceiling, tube hanging, suction wall, fence type,
flange a variety of installation methods for customers to choose.
Product Detail
PCB&Heat sink efficiency
PCB thickness 1.5mm,heat conductivity:2.0
PCB is glued to the aluminum housing,
the point heat source convert to surface hot source,
heat dissipation multiplied,
greatly improved the heat sink efficiency.
Quality LED Source
Top quality LED source
High luminance
Free maintenance
Long life span

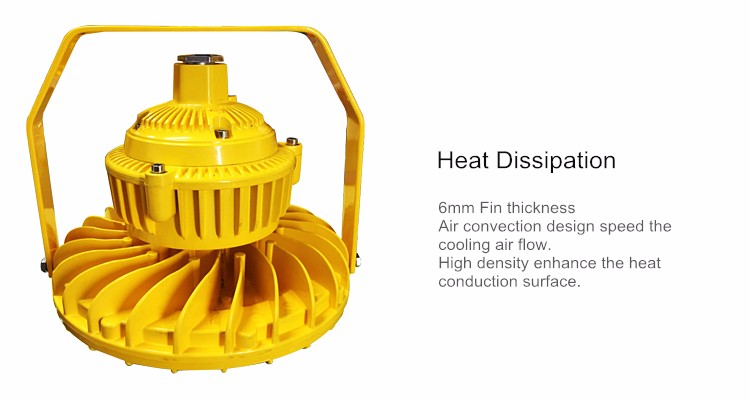

Heat Dissipation
6mm Fin thickness
Air convection design speed the cooling air flow
High desity enhance the heat conduction surface
IP66 Protection Level
Protection grade upto IP66
Water proof and dust proof
Fixture and angle adjustable
Company Introduction
Chengdu HKV Electronic Technology Co.,Ltd., established in 2016. We are located in Chengdu City of Sichuan
Province. We are professional on R&D, manufacture and offer
quality outdoor & industrial LED lighting. HKV committed to provide
professional solutions and technical service to customers. Our main
R&D engineers have more than 10 years experience in the Led
lighting. HKV strictly complies with ISO-9001 and the workshop is
managed according to the 7S site management system.
HKV takes quality as superiority and offer excellent pre-sale
support and after-sale services. HKV not only provides customers
with the high quality products with competitive price, but also
offers the corresponding solutions.
Mission: Not just LED manufacturer, but one professional LED
solution provider.
Q&A
Q1. Why choose us?Packaging Delivery & Payment
A:We are a professional LED Manufacturer and good at manufacturing
LED flood light, LED high bay light, LED street lightand, LED mart
light, LED explosion proof light and so on.As for LED,we have some
advantages as below:Factory direct selling,Original designs,High
quality control, fast delivery and competitive price.
Q2. How to order?
A:Submit an inquiry straightly , We will reply you at the earliest
time we can.
Q3. How long does the package take to delivery to my address?
A: For sample order, package arrives you in 10 Working days (3 days
for production, another 1-5 working days for delivery); For bulk
order, 30 days for North American Area(Shipping by Air).
Q4. Can you offer OEM service?
A: Yes,we can offer OEM service, we have our own designer and
skilled technicials at your service.
Q5. Do you offer samples?
A: Yes,samples are available. Please kindly let us know your
requirement.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm
the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control
system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with
new order for small quantity. For
defective batch products, we will repair them and resend them to
you or we can discuss the solution i
ncluding re-call according to real situation.
HKV sales team.
