NEW-FBG-200W high power efficiency explosion proof led lamp led
light for hazardous environment
1. specification
| Model Name | NEW-FBG-200W |
| Input voltage | AC90-265V |
| Power frequency | 50/60Hz |
| Power factor | 0.96 |
| Watte | 200W |
| Lumen | 22000lm |
| Luminous Efficiency | 110-130lm/w |
| CCT | 2700-3500K 3500-5000K 5000-6500K |
| CRI | Ra>=85 |
| Operating Temperature | -30℃ to 45℃ |
| IP | IP65 |
| Anti-corrosion | WF2 |
| Lifespan | >50000h |
| Certification | EX, IECEx, ATEX, CE, WF2 |
2. Products Description
A) Body in die-casting copper-free aluminum alloy, treated by
electrostatic spraying. with good performance of high temperature
resistance
and climate resistance. Tempered glass with good transmittancy.
B) Driver: Isolation class I, protection OPP / OVP / SCP / OTP,
Wide input voltage 90-265VAC, built-in active PFC>0.96,
THD<15%.
Surge Protection 10KV / 6KV / 4KV.
C) LED SOURCE: LED light source with diffirent possibilities if
temperature of the color.
D) Standard natural white color 4000K
E) Execution on request also with 3000K,6000K.
F) High Efficient of performance chromatic CRI>85,
lifespan>50000h
G) used in the olifiled, chemical industry, steel industry, power
port, petroleum etc. Harsh environment, moist area Zone1 Zone 2
Gas explosive environment: Group IIA, IIB, IIC. Temperature class:
T5 to T6

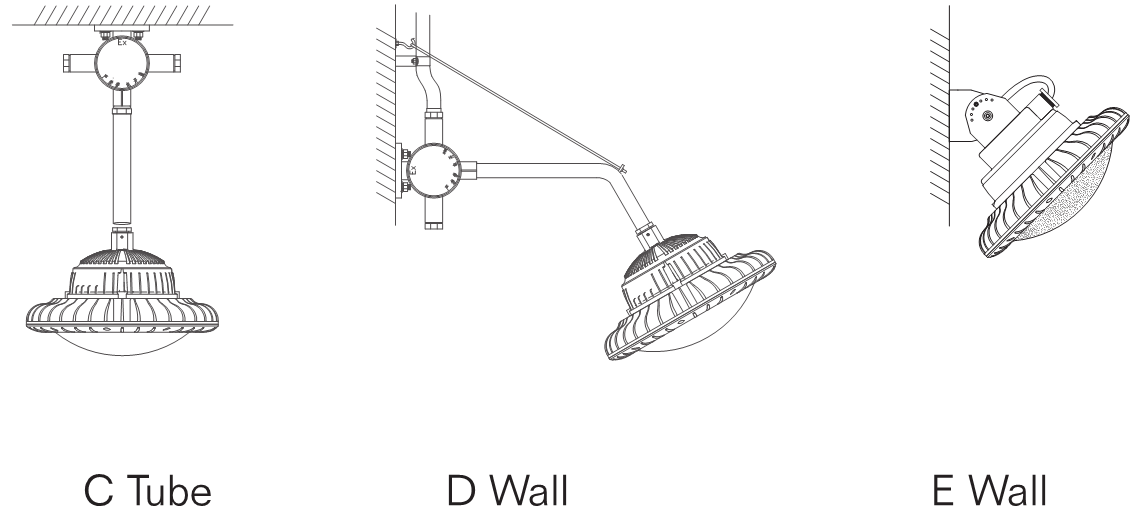

3. Install performance
Different Install according to the actural use.
4. Packing Information
N.W.: 8.2kg
Inner carton size: 39*39*28cm
Outer carton size: 40*40*28 (1pcs/ctn)
G.W.: 10kg/ctn
