30W explosion proof LED light fixture explosive proof light IP65
waterproof warranty 5years
1. specification
| Model Name | NEW-FBG-30W |
| Input voltage | AC90-265V |
| Power frequency | 50/60Hz |
| Power factor | 0.96 |
| Watte | 30W |
| Lumen | 3300lm |
| Luminous Efficiency | 110-130lm/w |
| CCT | 2700-3500K 3500-5000K 5000-6500K |
| CRI | Ra>=85 |
| Operating Temperature | -30℃ to 45℃ |
| IP | IP65 |
| Anti-corrosion | WF2 |
| Lifespan | >50000h |
| Certification | EX, IECEx, ATEX, CE, WF2 |
2. Products Description
Are the explosion-proof lamps produced by your factory
explosion-proof for bulbs? "In the minds of ordinary people, the
common light bulbs are incandescent lamps, the yellowing light
bulbs in my hometown, and energy-saving lamps, and explosion-proof
lamps are relatively rare, and I have never even seen them. Then
What exactly is an explosion-proof lamp, and where are
explosion-proof lamps generally used?
2 Explosion-proof principle
In fact, explosion-proof lamps are not explosion-proof bulbs. The
bulbs are still ordinary bulbs. Whether they are incandescent
lamps, energy-saving lamps, electrodeless lamps or LED lamps, they
are just light sources. They are not explosion-proof themselves,
but add an explosion-proof lamp shell to them. And even the way to
enter the line are threaded knob type. The explosion-proof lamp is
to prevent the arc, spark and high temperature that may be
generated inside, so as to achieve the effect of explosion-proof.
3 Explosion-proof places
Let's take a look at where explosion-proof lights are generally
used?
Such lamps are generally not used in ordinary places. The gas
stations we often see will use 40wled explosion-proof floodlights.
When you drive to refuel, pay attention to it and you will know;
Some places where cars, furniture, and mechanical equipment are
painted will also be installed with explosion-proof lights, because
paint is also flammable;
Explosion-proof sight-hole lights are basically installed on the
extractors, reactors, and CNC lathes similar to some grain and oil
equipment;
Dust explosion-proof lamps must be installed in places with
relatively large dust, such as workshops for polishing car wheels
and workshops for fans;
To sum up, special occasions must be equipped with explosion-proof
lights with high safety performance to avoid unnecessary accidents.
Our Aluminum Alloy Explosion Proof LED Light
Body in die-casting copper-free aluminum alloy, treated by
electrostatic spraying. with good performance of high temperature
resistance
and climate resistance. Tempered glass with good transmittancy.
Driver: Isolation class I, protection OPP / OVP / SCP / OTP, Wide
input voltage 90-265VAC, built-in active PFC>0.96, THD<15%.
Surge Protection 10KV / 6KV / 4KV.
LED SOURCE: LED light source with diffirent possibilities if
temperature of the color.
Standard natural white color 4000K
Execution on request also with 3000K,6000K.
High Efficient of performance chromatic CRI>85,
lifespan>50000h
3. Install performance
Different Install according to the actural use.

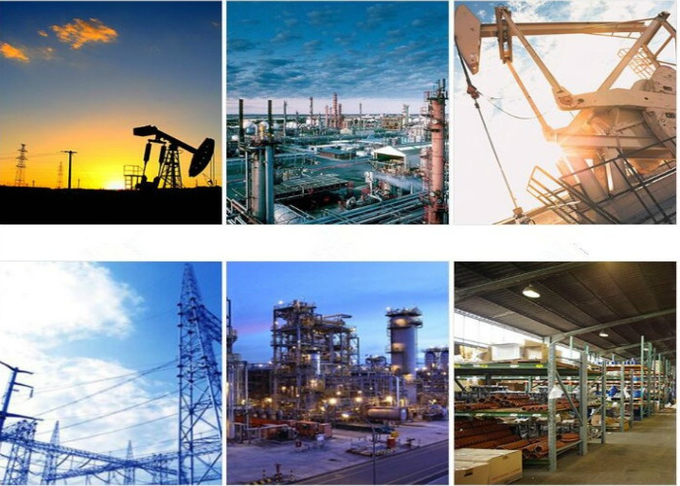

4. Application
Ideal to be used in the olifiled, chemical industry, steel
industry, power port, petroleum etc. Harsh environment, moist area
Zone1 Zone 2
Gas explosive environment: Group IIA, IIB, IIC. Temperature class:
T5 to T6
5. Company Information
Chengdu HKV Electronic Technology Co.,Ltd., established in 2016. We
are located in Chengdu City of Sichuan Province. We are
professional on R&D, manufacture and offer quality outdoor &
industrial LED lighting. HKV committed to provide professional
solutions and technical service to customers. Our main R&D
engineers have more than 10 years experience in the Led lighting.
HKV strictly complies with ISO-9001 and the
workshop is managed according to the 7S site management system.
