Oil And Gas Industry Explosive Proof Led Light EX Certificate
Explosion Proof LED Flood Light
Product Description
1.CE, ROHS, FCC, ATEX certified.
2.LED light source, power consumption is 20% of Incandescent light.
3.Soft white LED light with no glare, perfect electromagnetic
compatibility.
4.Modular design, easy to maintain and replace.
5.Casing adopt AL die-casting molding & electrostatic spraying
surface.
6.Different installation methods to meet different need.
Features:

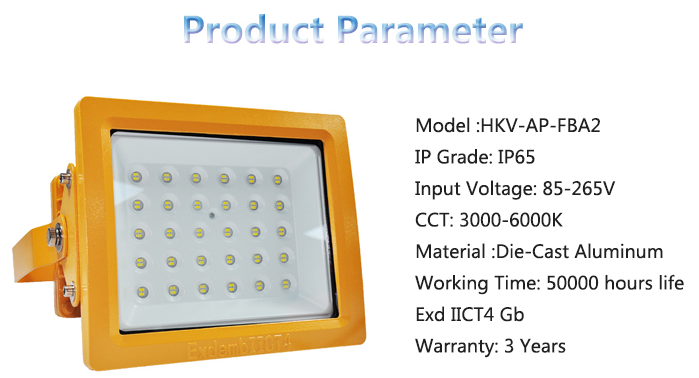

Model:HKV-AP-FBA2
IP Grade:IP65
Input Voltage:85-265V
CCT:3000-6000K
Material:Die-casting Aluminum
Working Time:50000 Hours Serve Life
Exd IIC T4 Gb
Warranty:3-Year
Product Sepcification
ATEX IP65 Waterproof 100w 200w 300w 400w Explosion Proof LED Flood
Light
| Model | HKV-AP-FBA2 |
| Light Source | LED |
| CRI(Ra>) | 80 |
| IP Rating | IP65 |
| Protection grade | WF2 |
| Input voltage | 85~265V |
| Certification | CCC CE ROHS ATEX |
| Light Efficiency | >110 lm/w |
| CCT | 3000~6500K |
| Power Factor | PF>0.95 |
| Ambient temp | -55℃~+60℃ |
4 Advantages
Advantages
1.Tempered glass,compressive and explosion-proof
Highly tough,explosion-proof,compression-resistant,high temperature
resistance
2.Highly waterproof
Three-layer protection(waterproof rubber pad,waterproof
rubber,metal cover)
3.Strong and durable-corrosion resistant
Aluminum alloy casting,air flow dispersion shell,good corrosion
resistance
4.Double sealing process-dustproof
Sealing combination of concave and convex grooves,potting and
sealing,good dust resistance
Product Detail
Installation Process
Applications:
The high power explosion proof led lamp provides operator with a
powerful and energy efficient alternative to traditional hazardous location luminaires.
It is ideal to be used as floodlight or spotlight at the oilfield, metallurgy,refinery, gas station, oil
rig, petroleum, petrochemistry and
anywhere a highly durable and efficient light source is needed that
can withstand exposure tohigh stress environments.
1.Hazardous:division 1&2,or 20,21,&22.
2.Explosive gas atmospheres:class IIA IIB IIC or inflammable dust
environment.
3.Indoor or outdoor(IP54,IP65*)
4.Temperature class:T1-T4/T5/T6
5.Equipped with incandescent lamp,mercury vapor lamp,high-pressure
sodium vapor lamp,metal halide lamp.
6.Widely using in the fields of oil,chemical
industry,spaceflight,warind-ustru and so on.
Company Introduction
Chengdu HKV Electronic Technology Co.,Ltd., established in 2016. We are located in Chengdu City of Sichuan
Province. We are professional on R&D, manufacture and offer
quality outdoor & industrial LED lighting. HKV committed to provide
professional solutions and technical service to customers. Our main
R&D engineers have more than 10 years experience in the Led
lighting. HKV strictly complies with ISO-9001 and the workshop is
managed according to the 7S site management system.
HKV takes quality as superiority and offer excellent pre-sale
support and after-sale services. HKV not only provides customers
with the high quality products with competitive price, but also
offers the corresponding solutions.
Mission: Not just LED manufacturer, but one professional LED
solution provider.
