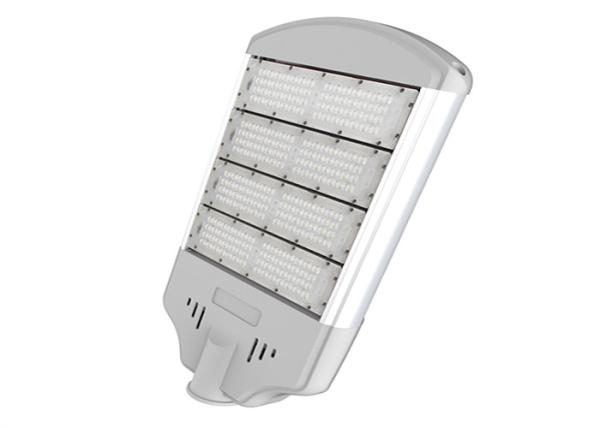

SMD3030 Out Door 60 Watt IP65 LED Street Lights High Luminous

Ask Lasest Price
Brand Name :	HKV
Model Number :	HKV-BR-SLF-50W
Certification :	CE RoHS
Price :	negotiable
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	1000 pcs per month
Delivery Time :	10-30 days

Add to Cart

Product Details
Company Profile

SMD3030 Out Door 60 Watt IP65 LED Street Lights High Luminous

Factory Outlet SMD3030 Out Door 60 Watt High Luminous IP65 Waterproof LED Street Lights

Product Description

High luminous LED light source,
CRI ≥80 Ra

Professional LED power supply,
First Level in the industry

High quality radiator,
Enhance heat dissipation effect

Project Case

On the year of 2015, we winned 3 projects in East Africa, and the
LED Street Lights be installed more than 3,000 pcs, and the reject
ratio only 1.5% till now, most of them are working well. The two
LED drivers(transformers) design, make the LED Street Lights have
excellent quality. More Bright, Eco-Efficient, Excellent Quality,
2xLED Drivers Design, High-Performance.

Technical Specifications

Rated Power	60W	90W	120W	150W
LED Chip	Philps/Epistar	Philps/Epistar	Philps/Epistar	Philps/Epistar
input Voltage	AC85-265V 50/60Hz	AC85-265V 50/60Hz	AC85-265V 50/60Hz	AC85-265V 50/60Hz
LED Output	> 130 lm/w	> 130 lm/w	> 130 lm/w	> 130 lm/w
Luminous Flux	> 7800lm	> 11700lm	> 15600lm	> 19500lm
CRI	> 80 RA	> 80 RA	> 80 RA	> 80 RA
Color Temperature	3000 - 6500 K	3000 - 6500 K	3000 - 6500 K	3000 - 6500 K
Power Factor	> 0.9	> 0.9	> 0.9	> 0.9
Harmonic	NF C13-200	NF C13-200	NF C13-200	NF C13-200
Junction Temp.	120℃	120℃	120℃	120℃
Ambient Temperature	-35 ℃~ +55℃	-35 ℃~ +55℃	-35 ℃~ +55℃	-35 ℃~ +55℃
Materials	Aluminum + PC	Aluminum + PC	Aluminum + PC	Aluminum + PC
Recommend Height	5~6 m	7~9 m	7~10 m	7~10 m
IK Protection	IK 09	IK 09	IK 09	IK 09
Protection Safety	Class 1	Class 1	Class 1	Class 1
Fixation	Cross Vis inox = 8m	Cross Vis inox = 8m	Cross Vis inox = 8m	Cross Vis inox = 8m
Wind Resistance	150Km/h	150Km/h	150Km/h	150Km/h
Waterproof	IP65	IP65	IP65	IP65
Size	410x340x82mm	485x340x82mm	560x340x82mm	635x340x82mm
Neight Weight	5.95 KG	7.2 KG	8.6 KG	10.1 KG
Life Span	50,000 hours	50,000 hours	50,000 hours	50,000 hours
Warranty	3 Years	3 Years	3 Years	3 Years

FAQ

Do you offer the ODM or OEM product?
COSMOS has gained a lot of experience on ODEM and OEM.
Do you have warranty for products?
Yes, we have 2 and 3 years warranty for different kinds of
products. During the period, if customers have the approval showing
product quality issues and if certified by COSMOS engineers, we
would request customers to ship back the failure parts and replace
new items with the transportation charged being paid by us.

Do you design the products?
Yes, COSMOS designs and assembles all the products what we are
selling.

What is your terms of delivery?
EXW, FOB, CIF, CIF, DDU etc. Anyone which you prefer.

What is the Terms of Payment?
L/C, T/T, D/P, D/A, Western Union and MoneyGram and so on.

How long is the delivery time?
Depends on the order quantities, normally the delivery time is
15-20 days.

What’s the standard package?
Standard package for export or special package if request.
